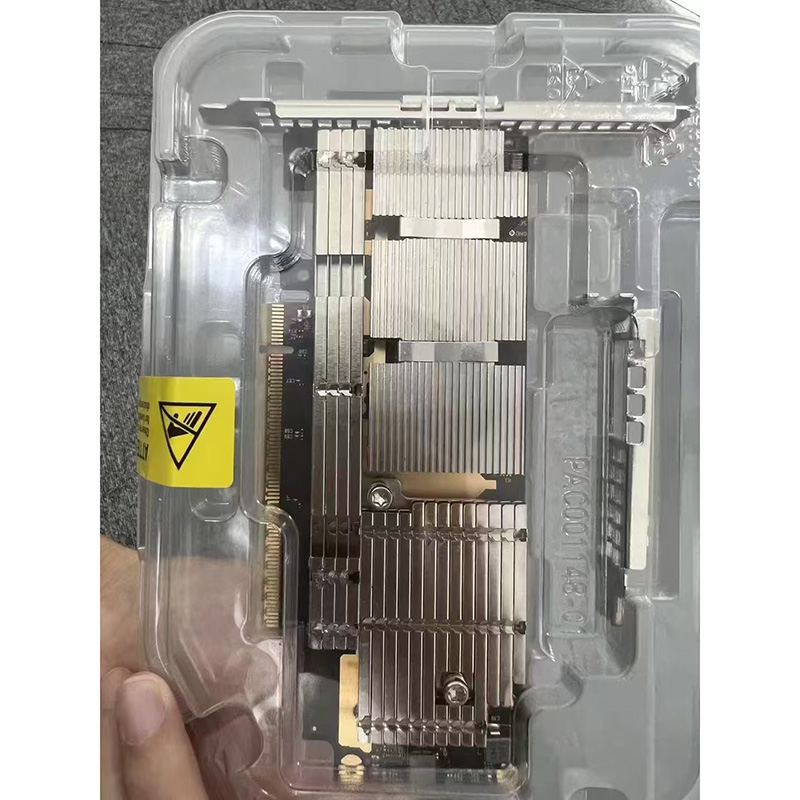

MCX75310AAS-NE CPU PCIE Brand New Original NVIDIA/Mellanox AI Network Card
Product Technology and Advantages
MCX75310AAS-NEAT is a ConnectX produced by NVIDIA ®- Remote Direct Memory Access (RDMA) network adapter for Series 7. This adapter supports InfiniBand and Ethernet protocols, and can provide speeds up to 400Gb/s.
Product Features:
Supports port connection speeds up to 400Gb/s.
Advanced NVGRE and VXLAN hardware offloading engines.
Hardware based I/O virtualization.
RDMA that supports high-performance storage access.
Support NVMe over Fabric uninstallation and NVMe over TCP acceleration.
Support secure boot function.
Supports advanced storage features, including block level encryption and checksum offloading.
Provide a complete IEEE 1588v2 PTP software solution.
Compliant with RoHS standards.
Accelerating Software Defined Networking: Utilizing ASAP2 technology to accelerate software defined networks, providing line speed performance without causing CPU loss.
Provide security from edge to core: offload and accelerate security through inline encryption/decryption of TLS, IPsec, and MACsec.
Enhance storage performance: Utilize RDMA/RoCE, GPUDirect Storage, and hardware based NVMe oF Offload engine to achieve high-performance and efficient data storage.
Enable precise timing: Provide extremely accurate time synchronization for data center applications and time sensitive infrastructure.
Product Manufacturing Process
The ConnectX-7 adapter is manufactured using 7nm process technology, which enables a single chip to integrate up to 8 billion transistors.
Electrical and thermal specifications: The voltage of this adapter is 12V, 3.3VAUX, and the maximum current is 100mA. The maximum power available through the OSFP port is 17W (not hot supported).
Environmental temperature: The working temperature range is 0 ° C to 55 ° C, and the non working temperature range is -40 ° C to 70 ° C.
Humidity: The working humidity ranges from 10% to 85% relative humidity, while the non working humidity ranges from 10% to 90% relative humidity.
Altitude: The altitude during operation is 3050m.
Regulatory standards: This product complies with CB/cTUTUS/CE safety standards, EMC standards including CE/FCC/VCCI/ICES/RCM/KC, and RoHS standards.
Appearance specifications: The size of the adapter card is PCIe half height, half length 2.71 inches x 6.6 inches (68.90 millimeters x 167.65 millimeters).
Product Application Areas
1.High Performance Computing (HPC): Used to perform complex simulation and data processing tasks.
2.Artificial Intelligence (AI): Supports large-scale data transmission and computing needs for AI applications.
3.Ultra Large Scale Cloud Data Center: Provides high-speed data transmission and precise timing required for data center applications and time sensitive infrastructure.
4.Enterprise level network: Meet the needs of traditional enterprises for intelligent, scalable, and feature rich network solutions.
Product Advantages
Qur CPU Systems inspection procedure includes
1.Label verification according to data sheet. Make sure Logo, PN, D/C, LOT No, MSL, RoHS etc on the label are correct.
2.Packing Condition Inspection and make sure all products are well anti-static sealed.
3.Extensive views like printing and Pin checking under microscope for quality detection.
4.Conduct additional test like electrical testing or other technical testing for further guarantee via our in-house, certified test labs.
5.Digital photos of all outgoing Integrated Circuit Systems parts.
Each step is very rigorous and aims to ensure that all products are delivered in the expected standard of excellence and quality.
