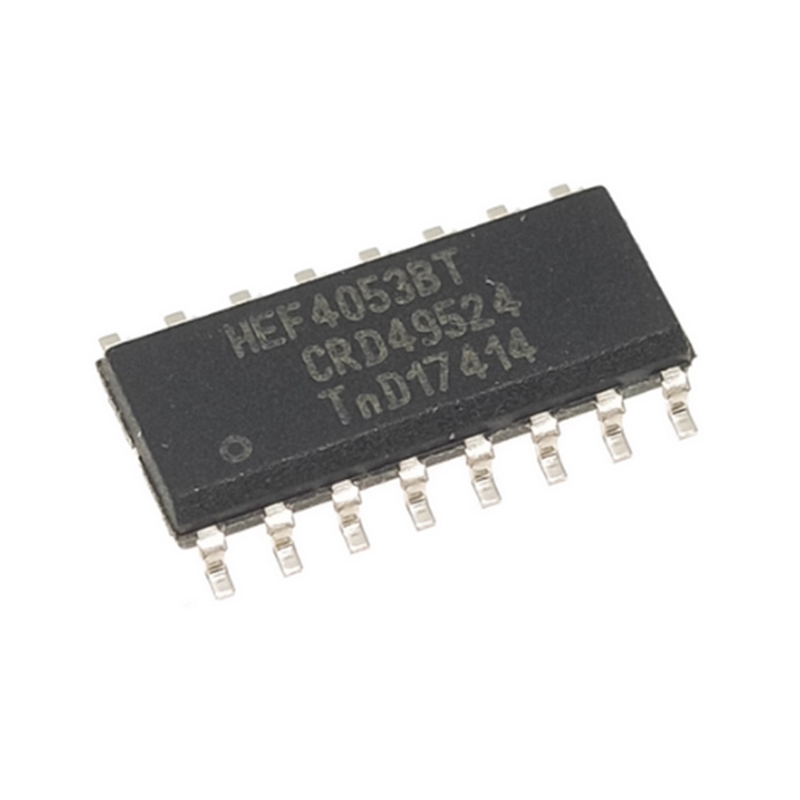

HEF4053BT Integrated Circuit, Processor, Microcontroller Analog Switch/multiplexer
Product Technology and Advantages
NXP HEF4053BT is a three channel analog switch with the following characteristics and parameters:
Three channel SPDT (single pole double throw) analog switch: suitable for analog or digital 2:1 multiplexer/demultiplexer applications. Each switch contains a digital selection input (Sn), two independent inputs/outputs (Y0 and Y1), and a common input/output (Z). All switches share a single digit to enable input (E). When E is at high level, the switch is turned off. The input includes a clamp diode, which allows the use of a current limiting resistor to connect the input interface to voltages exceeding VDD.
Wide power supply voltage range: from 3.0V to 15.0V, suitable for various power supply environments.
Low power CMOS design: helps reduce energy consumption.
High noise immunity: ensuring the stability of signals in noisy environments.
Full static operation: suitable for analog and digital circuits that require stable operation.
5V, 10V, and 15V parameter ratings: Provide specification parameters at different voltages.
Compliant with JEDEC standard JESD 13-B: Ensuring product reliability and consistency.
ESD protection: HBM (human body model) exceeds 2000V, CDM (charging equipment model) exceeds 1000V, meeting ANSI/ESDA/JEDEC JS-001 and JS-002 standards.
Operating temperature range: from -40 ° C to+125 ° C (TA), suitable for a wide range of environmental conditions.
Package type: 16 pin SOIC (Small Form Integrated Circuit) package, easy to surface mount.
On resistance: The maximum value is 175 ohms, with low contact resistance to reduce signal loss.
-3dB bandwidth: 70MHz, suitable for applications that require a wider frequency band.
Crosstalk: -50dB @ 1MHz, ensuring signal isolation in multi-channel applications.
Package size: 16-SOIC (0.154 ", 3.90mm wide), providing a compact packaging solution.
HEF4053BT is suitable for applications such as analog multiplexing and demultiplexing, digital multiplexing and demultiplexing, and signal gating. Due to its high performance and reliability, it is often used in precision measurement, medical equipment, and communication systems
Product Manufacturing Process
The NXP HEF4053BT is a three channel analog switch, with the following manufacturing process and features:
CMOS technology: HEF4053BT is manufactured using CMOS (Complementary Metal Oxide Semiconductor) technology, which allows for low power consumption and high noise immunity, while providing fully static operation.
Wide power supply voltage range: The power supply voltage range of this switch is from 3.0V to 15.0V, suitable for different power supply environments.
Low power design: CMOS low-power design helps reduce energy consumption, making it suitable for battery powered applications.
High noise immunity: HEF4053BT has high noise immunity, ensuring signal stability in noisy environments.
Standardized Symmetric Output Characteristics: Provides standardized symmetric output characteristics to ensure consistent signal transmission performance.
Compliant with JEDEC standards: The product complies with JEDEC standard JESD 13-B, which is a reliability testing standard for semiconductor devices.
ESD protection: including ESD (electrostatic discharge) protection, HBM (human body model) exceeding 2000V and CDM (charging equipment model) exceeding 1000V, in compliance with ANSI/ESDA/JEDEC JS-001 and JS-002 standards.
Wide operating temperature range: Product specifications range from -40 ° C to+125 ° C, suitable for a wide range of environmental conditions.
Package type: Usually using a 16 pin SOIC (Small Form Integrated Circuit) package for easy surface mount.
On resistance: Within the supply voltage range of 3.0V to 15.0V, the maximum on resistance (RON) is 175 ohms, ensuring low contact resistance and reducing signal loss.
-3dB bandwidth: 70MHz -3dB bandwidth, suitable for applications that require a wider frequency band.
Crosstalk: A crosstalk level of -50dB ensures signal isolation in multi-channel applications.
These manufacturing processes and design features make HEF4053BT highly suitable for applications such as analog multiplexing and demultiplexing, digital multiplexing and demultiplexing, and signal gating.
Product Application Areas
NXP HEF4053BT is a three channel analog switch suitable for analog or digital 2:1 multiplexer/demultiplexer applications. The following are its main application areas:
Analog multiplexing and demultiplexing: HEF4053BT can be used for multiplexing and demultiplexing analog signals, transmitting multiple analog signals through a small number of lines, suitable for data acquisition and signal processing systems.
Digital multiplexing and demultiplexing: In digital communication and control systems, HEF4053BT can be used to achieve multiplexing and demultiplexing of digital signals, improving data transmission efficiency.
Signal gating: HEF4053BT can be used as a signal gating device to control the on/off of signals, suitable for situations where precise control of signals is required.
Audio devices: In audio devices, HEF4053BT can be used for selecting and switching audio signals, providing high-quality audio processing capabilities.
Video equipment: In video equipment, this switch can be used for routing and distribution of video signals, ensuring signal stability and reliability.
Communication equipment: HEF4053BT can be used for signal multiplexing and demultiplexing in communication equipment, improving communication efficiency and signal quality.
Measuring instrument: In measuring instruments, this switch can be used to precisely control the routing of measurement signals, improving measurement accuracy and flexibility.
Data acquisition system: In the data acquisition system, HEF4053BT can be used to achieve signal multiplexing and demultiplexing, improving the efficiency and accuracy of data acquisition.
These application areas demonstrate the diverse and critical role of HEF4053BT in electronic devices, particularly in signal processing and data transmission. Its low power consumption, high noise suppression, wide supply voltage range, and high anti-interference ability make it an ideal choice for many electronic systems.
Product After-Sales Service
Technical support: Technical support can be provided through online, telephone, email and other contact methods.
Product documentation: The Nexperia official website provides a detailed datasheet for HEF4053BT, which includes important information such as product features, characteristics, applications, technical parameters, etc. This is an important resource for users to understand and use the product.
Sample ordering: As a customer of Nexperia, you can order samples through Nexperia's sales agencies. If you do not have a direct account with Nexperia, you can obtain sample support through Nexperia's global and regional distributor network.
Product purchase: HEF4053BT products can be purchased through Nexperia's official distributors.
Packaging and Distribution: Nexperia offers a variety of packaging options, including roll bands (TR) and bulk packs, to meet the needs of different customers.
Please note that specific after-sales service and repair policies may vary depending on the region and service contract. It is recommended that users directly contact Nexperia's customer service center for the most accurate information and assistance when they need service.
