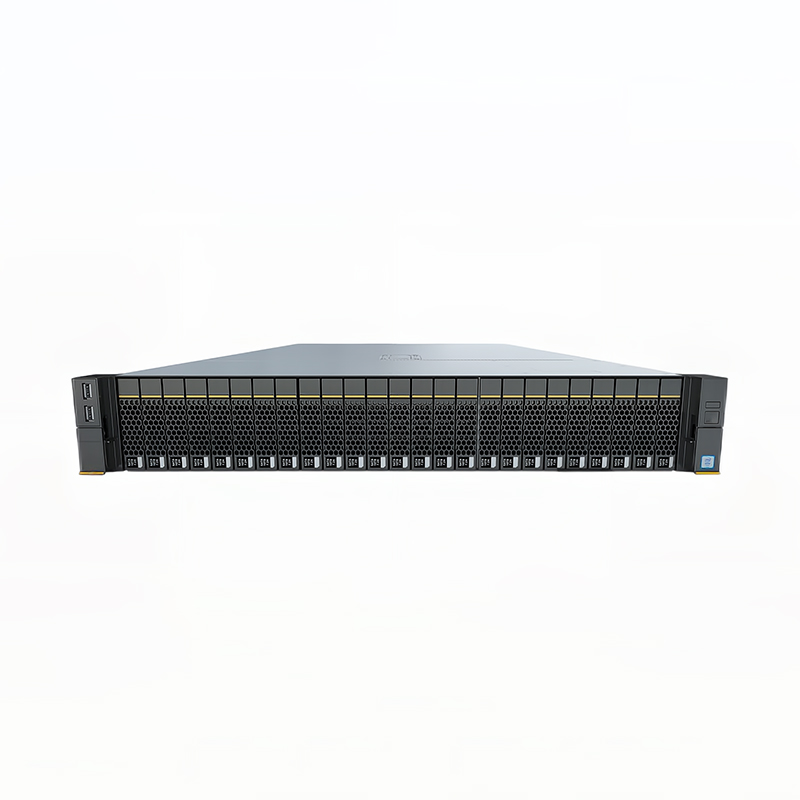

FusionServer 2288H V7 Server
Product Role and Benefits
1.High performance computing: supports fourth or fifth generation Intel ® xeon ® Scalable processor, providing powerful computing power, suitable for various computationally intensive tasks.
2.High memory capacity: It has 32 DDR5 memory slots, supports high-speed memory, and can handle large-scale data and complex application scenarios up to 5600MT/s.
3.Flexible Scalability: Provides up to 19 PCIe expansion slots and supports various network expansion capabilities, including OCP 3.0 network cards and PCIe 5.0, giving the server high flexibility and scalability.
4.Powerful storage capacity: Supports multiple hard drive configurations, including 2.5-inch and 3.5-inch SAS/SATA/SSD hard drives, as well as NVMe SSD drives, supports hot swapping, and can support up to 45 2.5-inch hard drives or 34 full NVMe SSDs.
5.Advanced RAID support: Provides multiple RAID configuration options, including RAID0, 1, 10, 1E, 5, 50, 6, 60, etc., supports Cache supercapacitor protection, ensuring data reliability and system stability.
6.GPU acceleration capability: Supports 4 dual width GPU acceleration cards or 14 single width GPU acceleration cards, suitable for AI inference, HPC, video analysis and other applications that require GPU acceleration.
7.Energy saving design: Adopting the industry's unique fan&CPU total power consumption algorithm, it saves 8% compared to the industry, supports platinum/titanium hot swappable power supplies, and improves energy efficiency.
8.Intelligent operation and maintenance: Integrated iBMC chip, supports standard interfaces such as Redfish, SNMP, IPMI2.0, etc., provides remote management interface, simplifies management complexity. Optional FusionDirector management software is available to achieve intelligent, automated, visualized, and refined management throughout the entire lifecycle.
9.Security features: Supports power on password, administrator password, TPM 2.0, security panel, secure boot, lid opening detection and other security features to ensure system security.
10.Easy to maintain: The design emphasizes the convenience of maintenance, improves the maintainability of the server, and reduces maintenance costs.
11.Strong environmental adaptability: Wide working temperature range, compliant with ASHRAE Class A1/A2/A3/A4, suitable for different data center environments.
12.The world's first excellent quality certification: Obtained the world's first server excellent quality Tick Mark certificate issued by Intertek, marking its leading level in technology, assembly, maintenance and other aspects.
These advantages make FusionServer 2288H V7 an ideal choice for various applications such as data centers, cloud computing, virtualization, big data, AI inference, and more.
Product Application Areas
FusionServer 2288H V7 is a new generation 2U 2-socket rack server launched by Super Fusion Digital Technology Co., Ltd. It is mainly optimized and designed for the following application areas:
1.Cloud computing: FusionServer 2288H V7 is suitable for cloud computing environments and can handle various computing needs in virtualization technology and cloud scenarios.
2.Virtualization: The server supports virtualization technology and is suitable for situations where multiple virtual machines and virtual desktop infrastructure (VDI) need to be run.
3.Distributed Storage: Suitable for distributed storage solutions such as Software Defined Storage (SDS), providing high-density storage capacity.
4.Big data processing: capable of handling big data applications such as data warehousing and analysis, supporting enterprises to extract valuable information from large amounts of data.
5.Enterprise Business Applications: Suitable for core business systems such as Enterprise Resource Planning (ERP) and Customer Relationship Management (CRM).
6.Telecommunications business applications: Provide high-performance and high reliability server platforms for the telecommunications industry, supporting various telecommunications services and applications.
7.AI reasoning: supporting artificial intelligence applications, especially AI reasoning tasks, capable of quickly processing machine learning model predictions and decisions.
8.Small businesses: Provide powerful computing power to support daily office and business operations for small businesses.
9.OA: Suitable for office automation (OA) systems to improve work efficiency and collaboration capabilities.
10.Web Applications: Supports various web servers and applications, such as Content Management Systems (CMS) and e-commerce platforms.
The FusionServer 2288H V7 server meets the needs of enterprise or telecommunications business applications and other complex workloads with its low energy consumption, powerful scalability, high reliability, easy management, and easy deployment. In addition, the server has also obtained the world's first Tick Mark certificate for excellent server quality issued by Intertek, marking significant breakthroughs in excellent craftsmanship, minimalist assembly, efficient maintenance, and other aspects, providing customers with a comfortable operating experience and efficient maintenance efficiency.
Product Operation Guide
The operation guide for FusionServer 2288H V7 server covers multiple aspects, including hardware installation, system configuration, maintenance, and troubleshooting. Here are some key operational steps and precautions:
Hardware installation:
Before installation, please make sure to read and understand all safety warning labels and guidelines.
Ensure that the server is placed on a stable surface and the surrounding environment meets the specified working temperature and humidity range (5 º C~50 º C).
Use the provided installation kit, including L-shaped rails, adjustable rails, and fixed rails, to correctly install the server onto the rack.
System configuration:
Turn on the server power and configure the system using the built-in iBMC management chip. IBMC supports standard interfaces such as Redfish, SNMP, IPMI 2.0, and provides a remote management interface.
Through iBMC, hardware monitoring, diagnosis, configuration, agentless, and remote control management functions can be performed.
Storage configuration:
FusionServer 2288H V7 supports multiple hard drive configurations, including 2.5-inch and 3.5-inch SAS/SATA/SSD hard drives, as well as NVMe SSD drives. Ensure that the hard drive is properly installed, formatted, and partitioned.
Configure RAID, supporting RAID 0, 1, 10, 1E, 5, 50, 6, 60, etc., with optional support for RAID level migration, disk roaming, self diagnosis, web remote settings, and other functions.
Network configuration:
The server supports multiple network expansion capabilities, including OCP 3.0 network cards and PCIe 5.0 support. Configure network interface cards (NICs) and related network settings as needed.
GPU and PCIe extensions:
If the server is used for applications that require GPU acceleration such as AI inference, HPC, video analysis, etc., install the corresponding GPU acceleration card and ensure that they are configured and driven correctly.
Power management:
The server supports 900W/1200W/1500W/2000W/3000W platinum/titanium hot swappable power supplies and supports 1+1 redundancy. Ensure proper power connection and configure power management settings as needed.
Operating system installation:
Install supported operating systems such as FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware iPadOS, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, openEuler, etc.
Please note that the specific operation guide may vary depending on the server configuration and usage environment. It is recommended to carefully read the user manual and product documentation before operation to ensure correct and safe operation of the server.
Product After-Sales Service
Technical Support: Provide comprehensive technical support services, including product documentation, installation and deployment guides, firmware and driver downloads, service support, online tools, etc. Users can obtain these resources through the official website of Super Fusion Digital Technology Co., Ltd.
Documentation: Provide technical documentation for rack servers, including product introductions, installation and deployment guides, to help users better understand and use the product.
Firmware and Drivers: Users can download relevant firmware and drivers to ensure stable server operation and performance optimization.
Spare parts list: Users can search for spare parts based on serial number, BOM, and product model, and export spare parts manuals for easy maintenance and repair work.
Case Library: A case library that provides excellent practices, troubleshooting, and operational skills to help users solve practical problems.
Service Hotline: Help and support can be obtained through online phone, email, and other means.
